Details

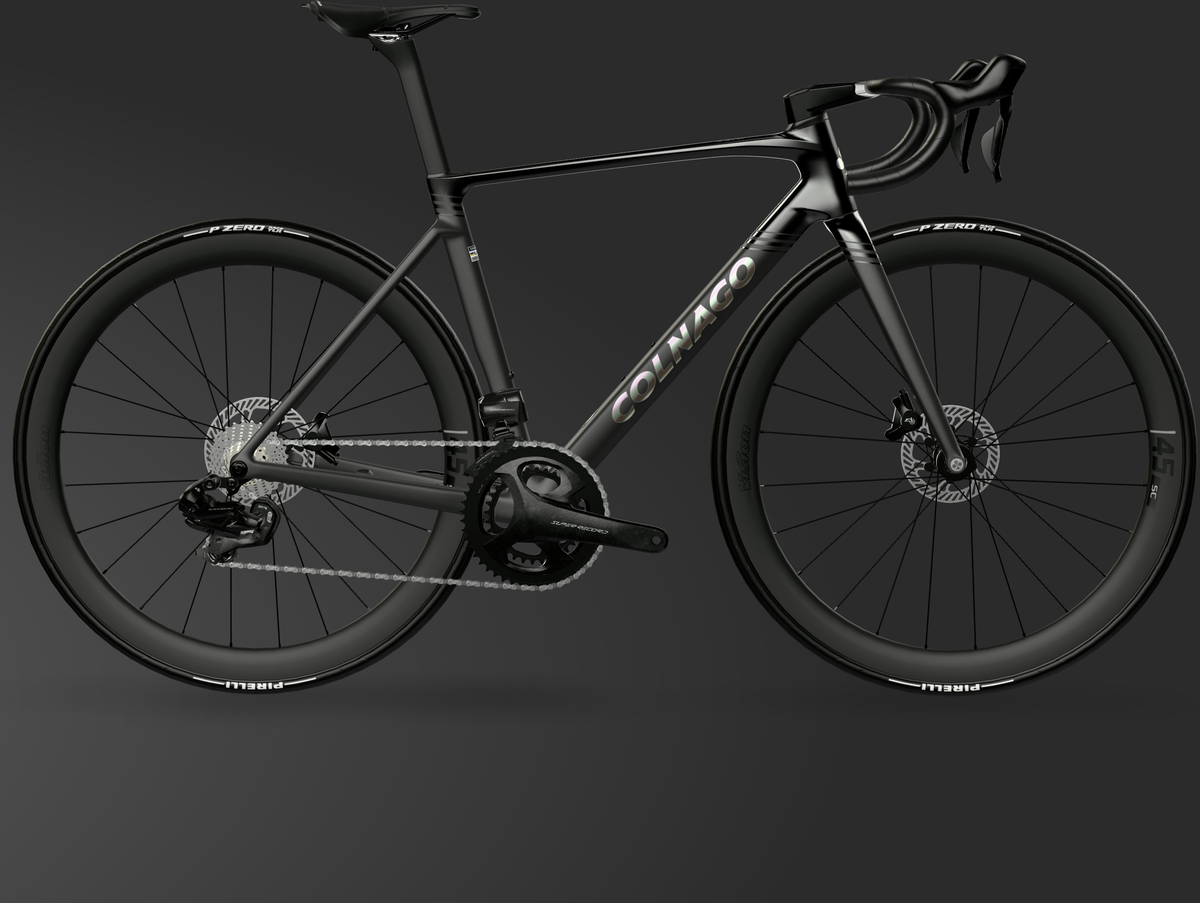

The V5Rs is the latest evolution of the Colnago V Series. Even lighter and more aerodynamic, the V5Rs is the ultimate all-round racing bike, designed to continue dominating the WorldTour with Pogacar and his team-mates.
The V5Rs is the lightest Colnago ever built, with a ready-to-paint frame weighing in at 685 grams. The frame kit weighs 12.5% less than its predecessor, without compromising rigidity.
The experience gained with the Y1Rs has allowed Colnago to refine the design of the V5Rs, which uses thin, high-performance profiles. In the wind tunnel, its aerodynamic performance is close to that of the best aero frames.
The frontal area of the V5Rs measures 250 cm², 13% less than its predecessor. The evolution of the head tube - now narrower - helps reduce air resistance and save watts.
The V5Rs combines lightness and aerodynamics without compromising stiffness and responsiveness, guaranteeing performance suited to the needs of the professional riders of the UAE teams.
This maybe the ultimate all-round hyper bike, race machine.
Specs
Frame | Colnago V5Rs Monocoque carbon frame |
---|---|
Fork | Carbon fork for disc brakes, integrated cables, Semi-Circular section. |
Headset | 1"1/8 and 1"1/4 - SLT Treated Bearings |
Rims/Wheels | VISION C45 |
Tires | Pirelli PZero Race 700x28 |
Crankset | Shimano Ultegra |
Chainwheel | 52-36T |
Bottom Bracket | BSA (English Threaded Bottom Bracket) Shimano |
Chain | Shimano CN-M8100 12V |
Front Derailleur | Shimano FD-R8150 |
Rear Derailleur | Shimano Shadow RD-R8150 |
Rear Cogs | 11-34t |
Shifters | Shimano Ultegra R8170 Di2 Disc - 12v |
Handlebars | Colnago CC.01 integrated Cockpit - regular geometry. |
Tape/Grips | Colnago Grip Black or Colnago WT23 (for WT24 color scheme only) |
Stem | CC01 integrated cockpit |
Brake Levers | Shimano ULTEGRA ST-R8170 |
Brakes | Shimano Ultegra R8170, 160 mm Front / 140 mm Rear, RT-CL900 rotors |
Pedals | Sold Separately |
Saddle | Prologo Scratch M5 Tirox |
Seat Post | Carbon seatpost, 15mm offset |
Color(s) | Black |
* Subject to change without notice.
Part Numbers
Option | MPN |
---|---|
42cm / Black / VRBK | |
45.5cm / Black / VRBK | |
48.5 m / Black / VRBK | 1CCL.V5S.OTU.U2E.VS5.485. |
51cm / Black / VRBK | |
53cm / Black / VRBK | 1CCL.V5S.OTU.U2E.VS5.530. |
55cm / Black / VRBK | |
57cm / Black / VRBK |
