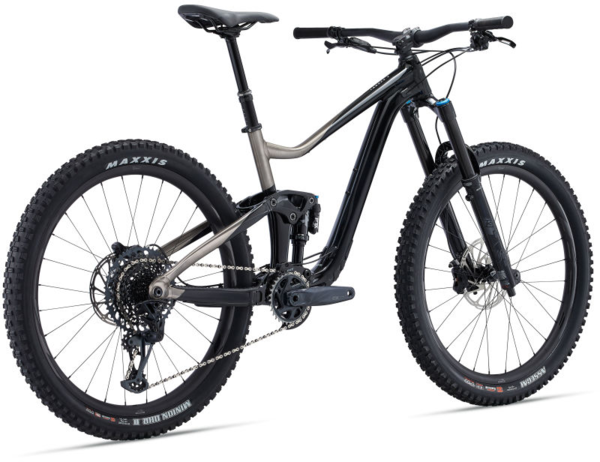

Giant Trance X 1

Giant Trance X 1
  • Color: Black/Smoke Metal/Chrome
$3,250.00
$4,500.00
Color:
Black/Smoke Metal/Chrome
Please select options
Order now and pick up in-store for free

Details

Float through rock gardens, hit the jumps, and find the faster line. With quick-handling 27.5 wheels and adjustable frame geometry, this lively trail bike is a party on wheels.

Built for those who favor the responsive, agile handling of 27.5 wheels, this trail ripper features flip chip that lets you adjust the frame geometry for riding style and terrain. You can choose a steeper or slacker headtube angle and either a 20mm or 30mm bottom bracket drop. The ALUXX SL aluminum frame is fitted with updated Maestro rear suspension featuring 145mm of smooth, active rear travel. A trunnion-mount shock and Advanced Forged Composite rocker arm help soak up bumps, giving you traction and control to float through rocks, roots and ruts. Confidence is further bolstered by a 160mm travel suspension fork up front.

Geo Chart

Geometry Chart:
SmallMediumLargeX-Large
Seat Tube Length (mm) 420 430 465 496
Seat Tube Angle 77.2° | 78.0° 76.3° | 77.0° 76.3° | 77.0° 76.3° | 77.0°
Top Tube Length (mm) 562 | 560 595 | 593 622 | 620 649 | 647
Head Tube Length (mm) 95 105 115 125
Head Tube Angle 63.7° | 64.5° 63.8° | 64.5° 63.8° | 64.5° 63.8° | 64.5°
Fork Rake (mm) 37 37 37 37
Trail (mm) 138 | 132 138 | 132 138 | 132 138 | 132
Wheelbase (mm) 1179 | 1177 1203 | 1202 1233 | 1231 1262 | 1260
Chain Stay Length (mm) 433 | 430 433 | 430 433 | 430 433 | 430
Bottom Bracket Drop (mm) 30 | 20 30 | 20 30 | 20 30 | 20
Stack (mm) 596 | 590 605 | 599 614 | 608 623 | 617
Reach (mm) 427 | 435 447 | 455 472 | 480 497 | 505
Stand Over Height (mm) 709 | 718 714 | 723 740 | 750 762 | 772
Handlebar Width (mm) 800 800 800 800
Stem Length (mm) 40 40 50 50
Crank Length (mm) 165 170 170 170
Wheel Size 27,5" 27,5" 27,5" 27,5"

Specs

Frame ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, flip chip, 12x148mm thru-axle
Fork Fox 36 Performance Elite, GRIP 2 damper, 37mm offset, 160mm, 15x110 Kabolt X, custom tuned for Giant
Rear Shock Fox Float X Performance Elite, lockout, 185/55, custom tuned for Giant
Rims Giant TR-1 27.5 WheelSystem
Hubs Giant TR-1 27.5 WheelSystem
Spokes Giant TR-1 27.5 WheelSystem
Tires Front: Maxxis Assegai 27.5x2.6, 3C MaxxTerra, EXO, TR
Rear: Maxxis Minion DHRII 27.5x2.6, 3C MaxxTerra, EXO, TR, tubeless
Bottom Bracket SRAM DUB, press fit
Crankset SRAM GX Eagle, 32t
Shifters SRAM GX Eagle, 1x12
Rear Derailleur SRAM GX Eagle
Cassette/Freewheel SRAM XG-1275, 10x52
Chain SRAM GX Eagle
Brakes SRAM Code R, hydraulic
Rotors SRAM CenterLine rotors [F]200mm, [R]180mm
Brake Levers SRAM Code
Handlebars Giant Contact TR35, 800x35mm, 20mm rise
Tape/Grips Giant Tactal Pro Single
Stem Giant Contact SL 35
Seatpost TranzX travel-adjustable dropper, remote
Saddle Giant Romero
Accessories & Extras Tubeless prepared, 2.6" max tire size, 34t max chainring size, MRP AMG CS chain guide

* Subject to change without notice.

Part Numbers

Option UPC MPN
Black/Smoke Metal/Chrome / Small 04712878787384 2201077104
Black/Smoke Metal/Chrome / Medium 04712878787391 2201077105
Black/Smoke Metal/Chrome / Large 04712878787407 2201077107
Black/Smoke Metal/Chrome / X-Large 04712878787414 2201077108
